Biaxial geogrids

Geogrids

The Pietrucha Group is the manufacturer of the PolGrid geogrids, specialized geosynthetics widely used in the civil engineering projects to stabilize and reinforce land or to separate the substrate layers with varying graining. The solid, integral structure of PolGrid products and four-sided openings function considerably better with  aggregate than flat profile grids or geogrids with rounded openings. Geogrids are used  in transport construction projects and other geothechnical works. PolGrid products are quick and easy to install and allow for the reduction of the use of materials, thus saving investment costs and saving time.

Biaxial geogrids

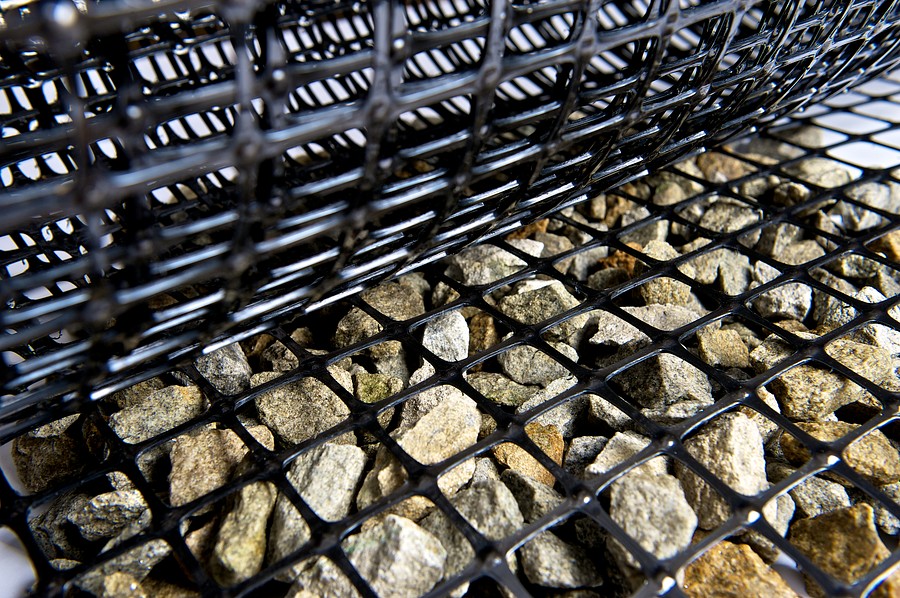

Geogrids with a rectangular cross-section of the rib. In the manufacturing process, the perforated PVC plate is stretched biaxially. Owing to solid construction without any interconnecting junctions, biaxial geogrids are extremely durable and resistant to stretching. Stiff nods of the grid are an integral part of the construction and rectangular openings give excellent support to the aggregate.

Application:

  • Reinforcement of road substructures
  • Construction of temporary and technological roads
  • Construction of forest roads
  • Construction of access roads to wind-farms
  • Construction of parking areas
  • Reinforcement of substructures of railway tracks
  • Reinforcement of embankments and dykes
  • Reinforcement of building foundations
  • Reinforcement of substructures under technical floors and mass storage areas
  unit BX 10/10 BX 15/15 BX 20/20 BX 25/25 BX 30/30 BX 40/40 BX 45/45
Polymer type   PP PP PP PP PP PP PP
Minimum carbon black % 2 2 2 2 2 2 2
Peak tensile strength MD/CMD kN/m 10/10 15/15 20/20 25/25 30/30 40/40 45/45
Junction efficiency % 100 100 100 100 100 100 100
Aperture size - MD mm 39 (±4) 39 (±4) 39 (±4) 39 (±4) 39 (±4) 35 (±3) 35 (±3)
Aperture size - CMD mm 39 (±4) 39 (±4) 39 (±4) 39 (±4) 39 (±4) 35 (±3) 35 (±3)
Length in a roll m 205 75 75 50 50 30 30
Roll width m 4 4 4 4 4 4 4

PolGrid BX product range

The size of the opening is extended to 65 mm, intended to be used with larger graining aggregate.

  • Reinforcement of railway track substructure
  • Reinforcement of road foundations
  • Construction of temporary and technological roads
  • Construction of forest roads
  • Construction of access roads to windfarms
  unit BX MAX 20/20 BX MAX 30/30 BX MAX 40/40
Polymer type PP PP PP PP
Minimum carbon black % 2 2 2
Peak tensile strength MD/CMD kN/m 20/20 30/30 40/40
Junction efficiency % 100 100 100
Aperture size - MD mm 65(±12) 65(±12) 65(±12)
Aperture size - CMD mm 65(±12) 65(±12) 65(±12)
Length in a roll m 50 50 30
Roll width m 4 4 4
